Precision Engineered Lab Workstations

Designed with precision and functionality in mind, our cabinets meet the rigorous demands of laboratory environments, offering unmatched safety, hygiene, and efficiency.

Precision Engineered Lab Workstations

Designed with precision and functionality in mind, our cabinets meet the rigorous demands of laboratory environments, offering unmatched safety, hygiene, and efficiency.

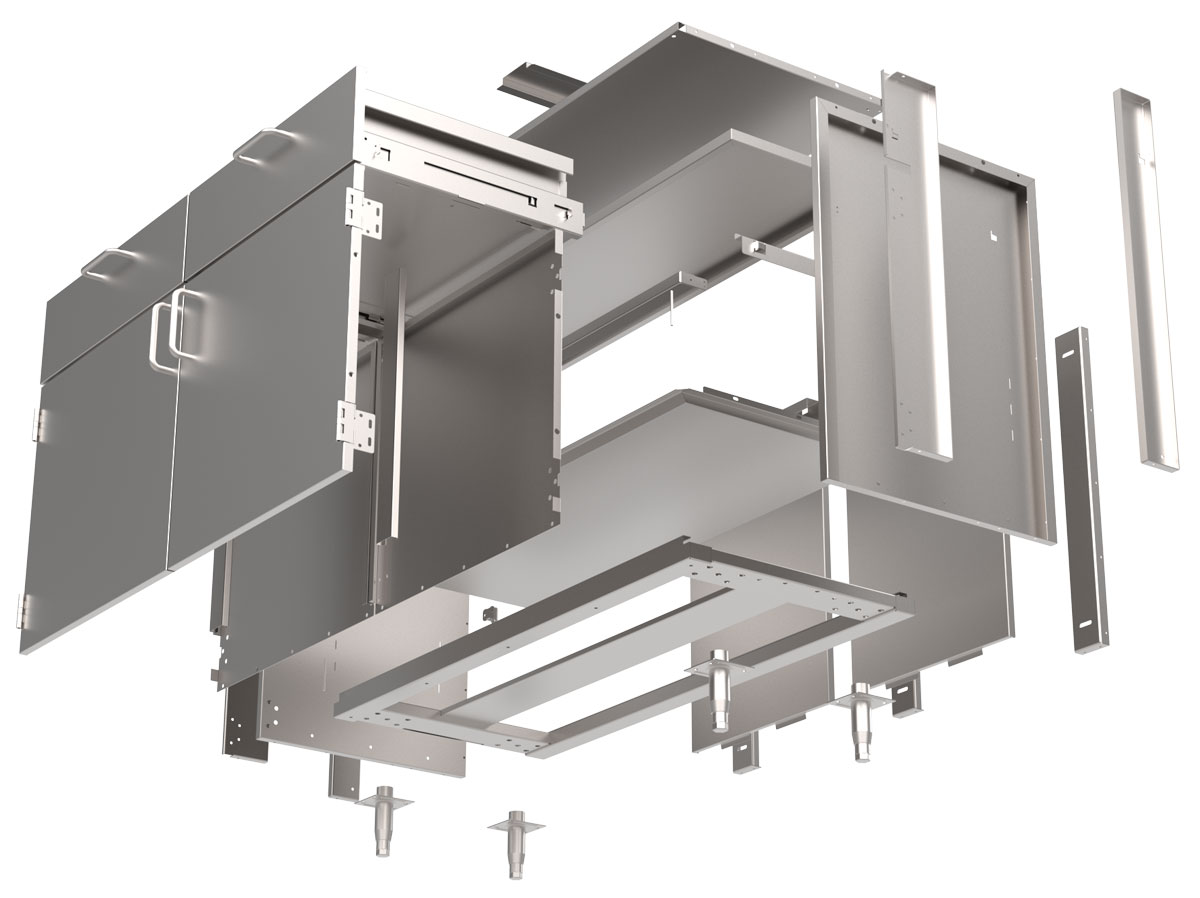

Cabinet Construction

Designed with precision and functionality in mind, our cabinets meet the rigorous demands of laboratory environments, offering unmatched safety, hygiene, and efficiency.

3100 Series

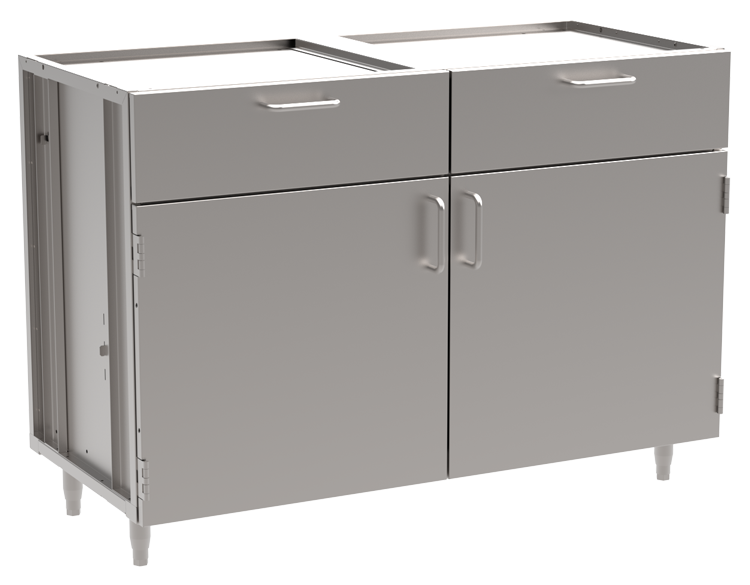

Cabinet Features

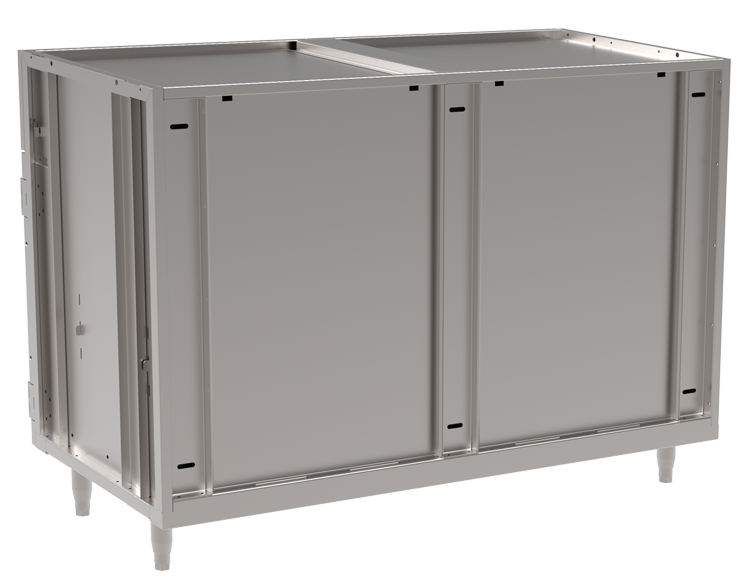

Removable Back Panels

18 Gauge Panels (.048”)
Remove via two ¾” top notches and two 5” bottom tabs per back panel
2 removable back panels for double door cabinets

Removable Spill Resistant Floor Panels

18 Gauge Panel (.048”)
Holds roughly ½ gallon per linear foot
Remove via 3 screws on left and right side

Stainless Steel Slides

Side-mount
200lb weight capacity per pair

RPC (Rockford Process Control) USA 5 Knuckle Hinges

2 ¾” Hinges with 14G Brackets

3100 Series

Metal Cabinet Alloy

Stainless Steel Leveling Legs

Made In-House
2.5” of adjustability
Support over 2,000 lbs. (900kg) at full extension
Extends from 4” to 6.5”
1” from sides – 3” from back and front – 4” from front including door.

Full 304 Stainless Steel Construction

18 Gauge (.048”)
14 Gauge (.0751”) Channels – 2 on back, 1 on each side, and 1 floor channel
16 Gauge (.1595”) Shelf Brackets
14 Gauge (.0751”) Hinge Brackets

316 Stainless & Aluminum Alloy options

Testing Standards for Lab Casework

Testing Standards

Cabinet Integrity

Drawer Cycle Test:
Tests the drawer and its hardware for performance and endurance over extended use.

Chemical Resistance Test:

Evaluates the cabinet’s resistance to common laboratory chemicals to ensure long-lasting durability in lab environments.

Door Hinge Test:

Evaluates the strength and attachment of the door hinge, ensuring it allows smooth and consistent door movement.

Door Cycle Test:

Simulates years of use, testing hinge strength and the attachment’s durability through repeated cycles.

Testing Standards

Load & Impact

Total Load Test:

Assesses the cabinet’s overall strength and structural integrity by evaluating its ability to withstand substantial loads.

Concentrated Load Test:

Measures how well cabinet doors and drawers perform under a concentrated load applied to the cabinet's top surface.

Torsion Load Test:

Tests the cabinet’s construction for durability and integrity when subjected to twisting forces.

Drawer Static Test

Tests the drawer’s face and hardware to ensure they hold up under a static point load.

Drawer Impact Test

Checks the resilience of the drawer bottom against sudden impact from a dropped load.

Drawer Internal Rolling Impact Test

Assesses the strength of the drawer back and joints under internal impact force from a falling load.

Everything In-House | The JW Difference

Modern Metal Cabinet Maufacturing Using a Laser Cutter

Fabrication

Through precision laser cutting, we shape raw materials, laying the groundwork for your modern metal cabinets.

Modern Kitchen Cabinet Panel Bender Machine

Manufacturing

Our state-of-the-art machinery allows us to manufacture metal cabinets to exact specifications.

Assembly

Our metal cabinets are skillfully assembled to ensure each component fits seamlessly and securely.

Powder Coating

Our in-house powder coating department ensures a quality, long-lasting finish on all 75+ color options.

Quality Control

Each cabinet undergoes rigorous quality control inspections, guaranteeing durability and precision in every detail.

Stainless Steel Kitchen Countertop Test Fit

Packaging

Finally, the cabinets are carefully packaged to ensure they arrive safely and in pristine condition for our customers.

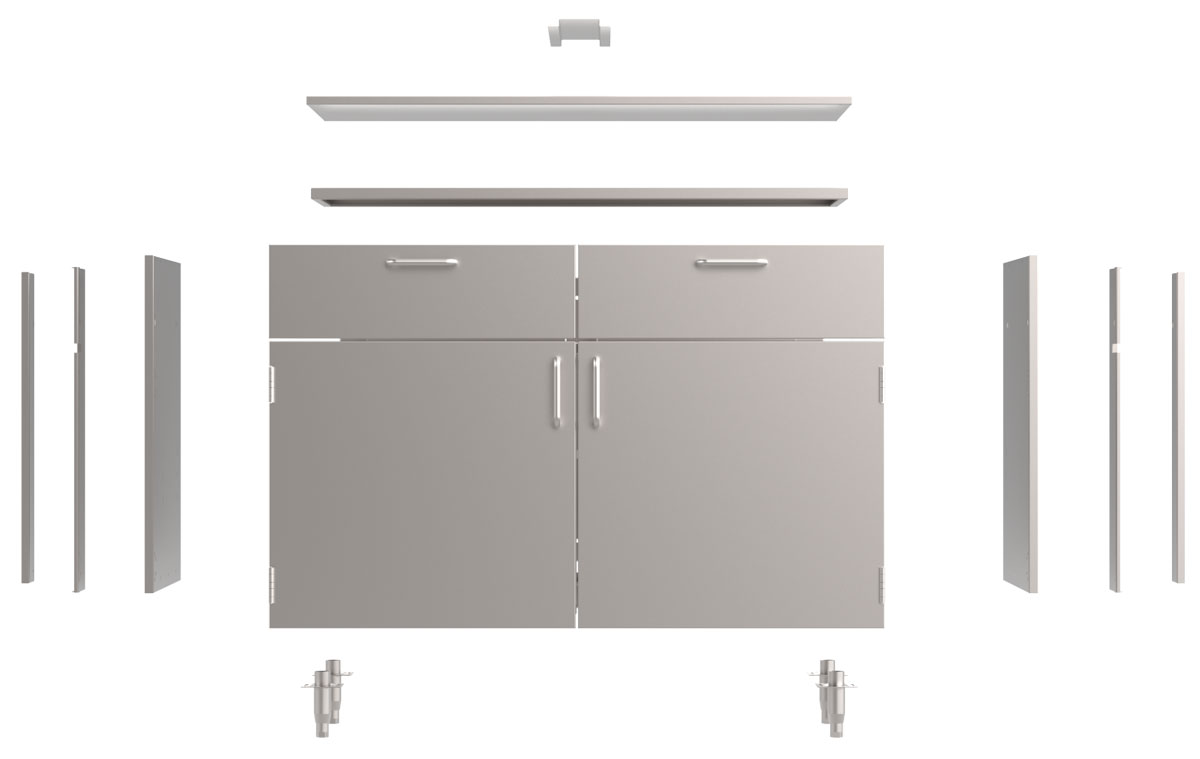

Custom Laboratory Cabinets: Built to Your Specifications

We understand that every laboratory has unique needs, which is why we specialize in custom-built cabinets tailored to your exact specifications. From sizing and configuration to material choice and specialized features, our team works with you to create storage solutions that perfectly fit your space, workflow, and safety requirements.
